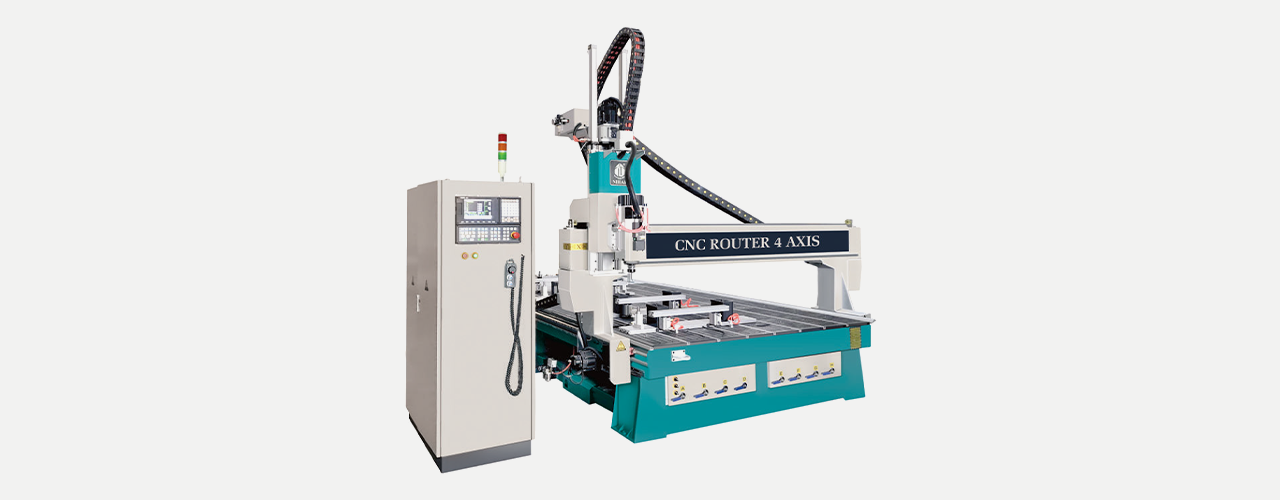

| Description | CNC ROUTER 4 AXIS |
|---|---|
| XYZ Working Area | 1830mm*3040mm*500mm |
| Process Precision | ±0.05mm |
| Reposition Precision | ±0.025mm |
| XY Structure | High Precision Planetary Gear Box X and Y Movement. |
| Z Structure | Backless Free Taiwan TBI Ball Screw, Taiwan Square Linear Guide. |
| Spindle | Italian HSD 9KW ATC air cool spindle. (spindle can rotation 0-180'c freely) |
| Spindle Speed | 0-24000 RPM |
| Tool Magzine | Linear tool library 8 tools |
| Tool Holder | 8 pcs |
| Table | Vacuum suction worktable 8 Zones |
| Motor and Driver | Japanese Yaskawa Servo motor and Driver |
| Motoreducer | Japanese SHIMPO |
| Inverter | Taiwan Delta Inverter 11kw |
| Control System | Taiwan Syntec control system |
| Software | Artcam, Mastercam, UG, Powermill |
| Command | G code (HPGL, U00,mmg,plt) |
| Collet | Er32 |
| Max.Idling Speed | 60m/min |
| Max.Working Speed | 35m/min |
| Oil Injection | Manual |
| Cable | Germany Igus cable |
| Working Voltage | AC380V-Three Phase |
