Technical Specification
*Specifications are subjected to change without notice.

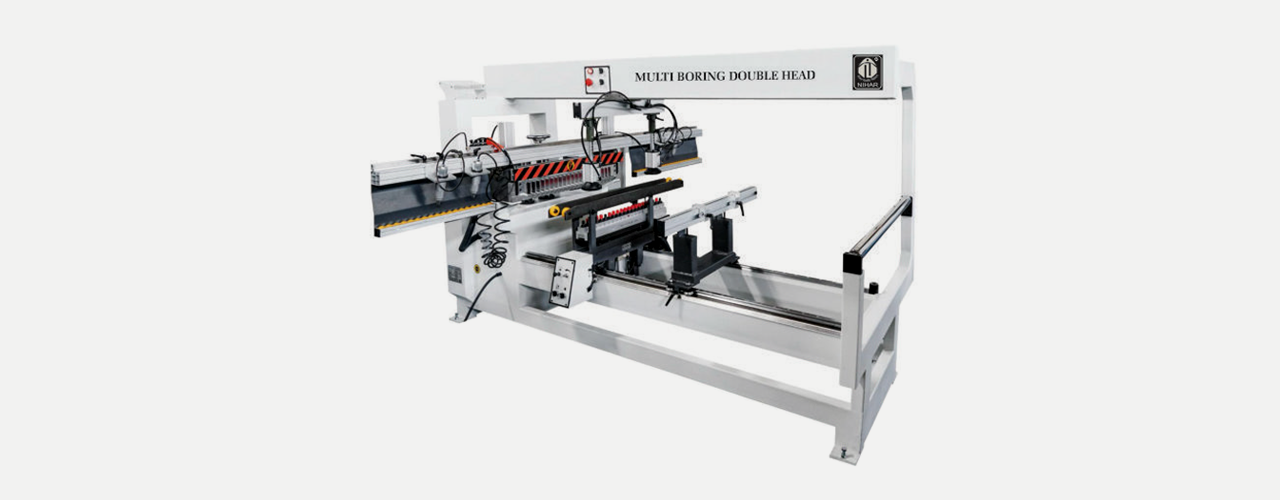

Description NR-153-2R
Max Hole Diameter Max=35 mm (Single Bit)
D=13 mm (Multi bit)
Drilling Depth H max = 60 mm
Drill Fitting Diameter 10mm
Max Processing Hole Distance L Max x B Max =1500 x 640 mm
Total Power of Motor 3 kw
Spindle Speed 2840 RPM
Total Number of shafts 21x2=42
Dimensions 2300 x 2500 x 1460 mm
