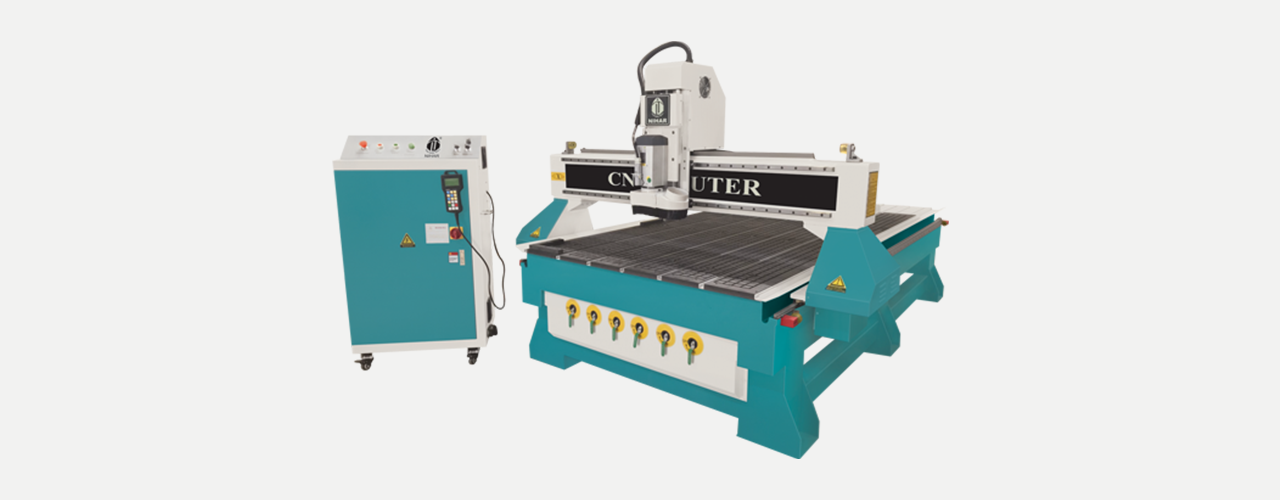

| Description | NR - 115 | NR - 115 E |
|---|---|---|
| X-Y-Z Axis Movement | 1300 x 2500 x 300 mm | 1220 x 2440 x 300 mm |
| Reposition Accuracy | 0.01 mm | 0.01 mm |
| X-Y Movement | Taiwan Rack & Pinion Transmission | Taiwan Rack & Pinion Transmission |
| Z Movement | German Ball Screw | German Ball Screw |
| X-Y-Z Movement | Through Japanese Planetary Gear Box | Through Belt Drive |
| Table Size | 1440 x 3040 mm | 1440 x 3040 mm |
| Max Idling Speed | 35m/min | 25m/min |
| Max Cutting Speed | 25m/Min | 15m/Min |
| Working Voltage | 3 Ø / 380V / 50HZ | 3 Ø / 380V / 50HZ |
| Spindle (Air Cooled Italian HSD Spindle) | 6HP, 0-18000 RPM | 6HP, 0-18000 RPM |
| Drive Motor | Servo | Stepper |
| Command | G Code (*.mmg, *.plt, *.tap) | G Code (*.mmg, *.plt, *.tap) |
| Computer Interface | USB | USB |
| Cable & Cable Guide | “IGUS” German | “IGUS” German |
| Controls | NK-105 / NC Studio | NK-105 / NC Studio |
| Collet Type & Size | ER 32 (3mm, 6mm, 12mm) | ER 32 (3mm, 6mm, 12mm) |
| Work Piece Holding | Manual T - Slot Clamping | Manual T - Slot Clamping |
| Vacuum Clamping | Optional | Optional |
Nihar Industries is synonymous with wood crafting machineries. We excel in manufacturing machineries required in wood Cutting, Polishing, Pressing, Fabrication and Engraving.
