Technical Specification

*Specifications are subjected to change without notice.

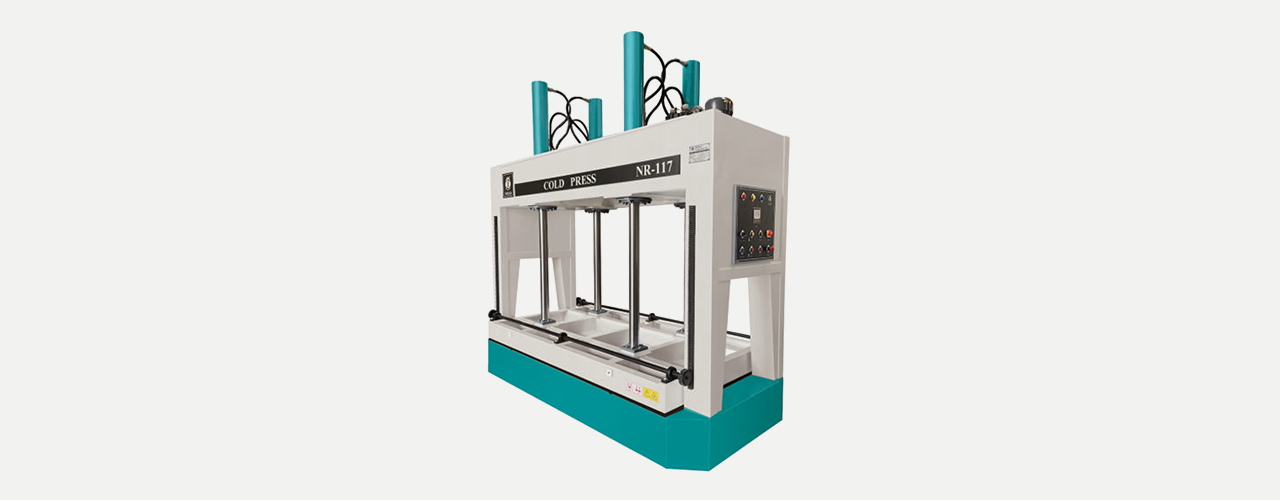

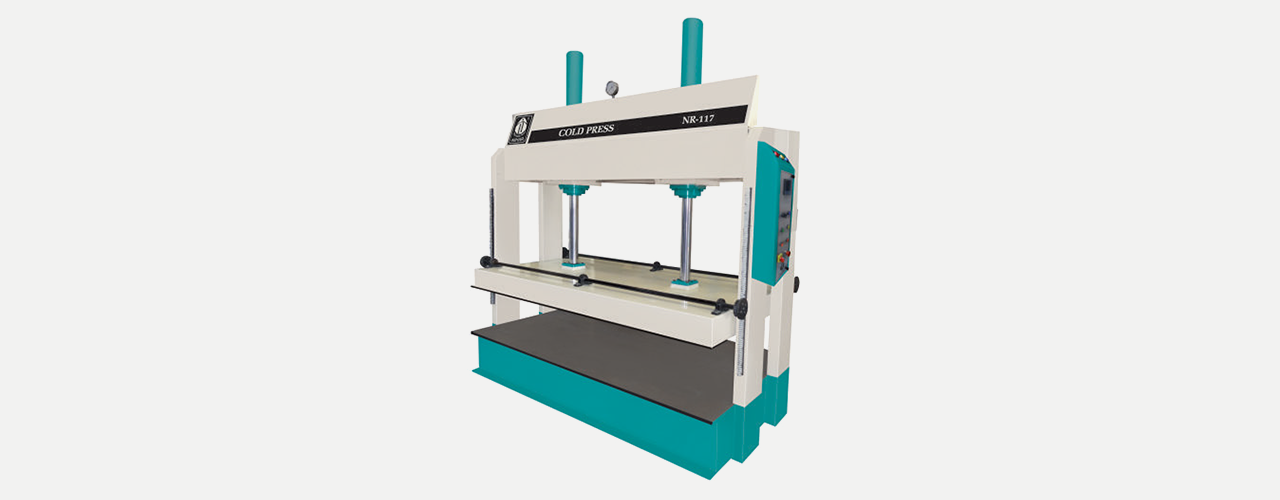

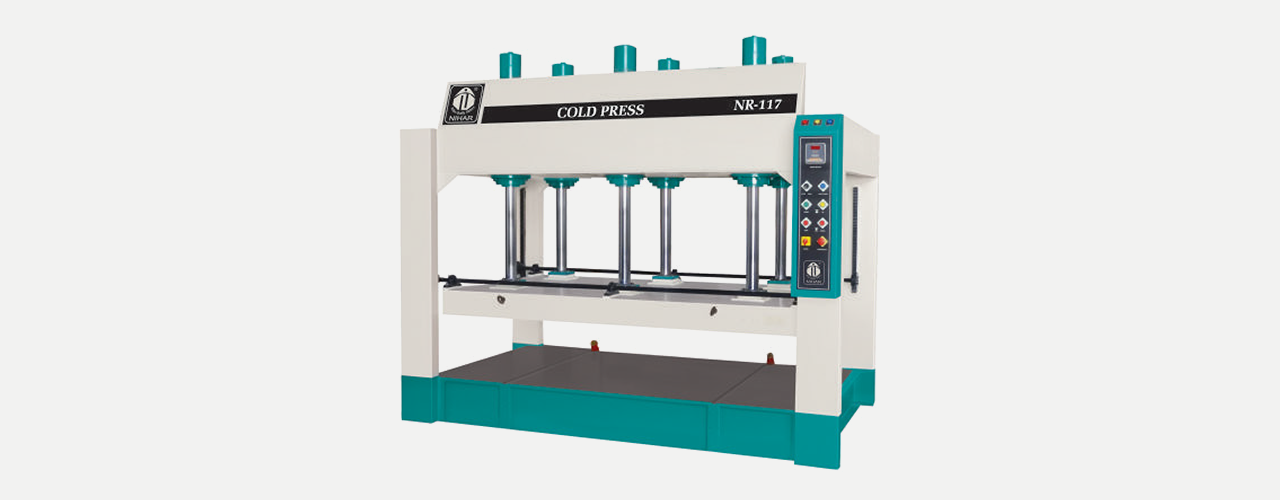

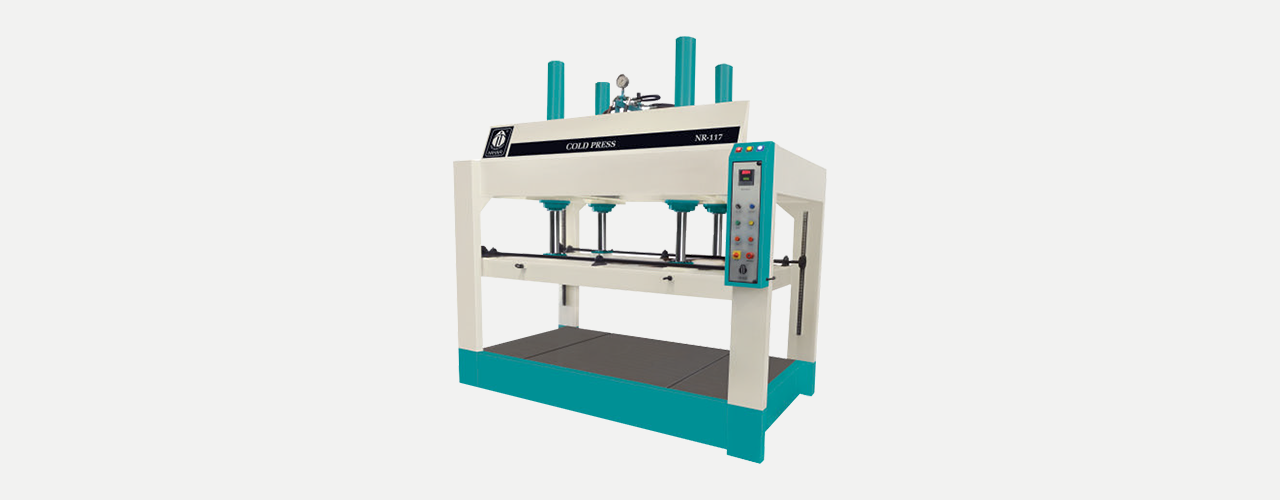

Description	Unit	NR-117 2C	NR-117 4C	NR-117 E 4C	NR-117 6C
Capacity	Ton	50	100	100	150
Platen Size	mm	2500 X 1300	2500 X 1300	2500 X 1300	2500 X 1300
Max Opening	mm	1000	1000	1000	1000
No of cylinders	Nos	2	4	4	6
Ram Stroke	mm	1000	1000	1000	1000
Automatic Power Pack Panel	HP	3	5	5	7.5

Silent Features

Top and bottom platen designed to generate and handle uniform pressure.
Robust heavy duty structure.
Auto pressure control system to maintain pressure within limit through out pressing cycle.
Operation cycle timer.
Manual and auto system.
Motor protection circuit breaker for motor overload protection.
Emergency Stop Arrangement.

Optional Features

Platen size can be customized as per requirement.
Ask for cold press in different size like 10'x4', 9'x5', 10'x5', 9'x6', 10'x6', etc.

Nihar Industries is synonymous with wood crafting machineries. We excel in manufacturing machineries required in wood Cutting, Polishing, Pressing, Fabrication and Engraving.
