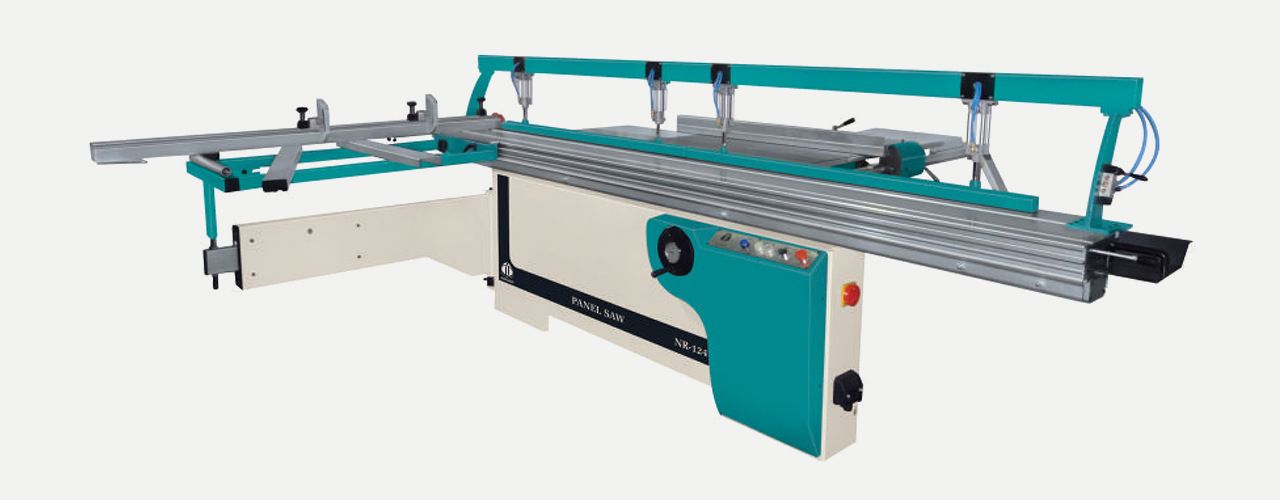

| Description | Unit | NR - 124 |
|---|---|---|
| Sliding Table Size (L X W) | mm | 3200 x 360 |
| Rip Capacity / Cutting Width | mm | 1250 |
| Main Saw Section | ||
| Saw Blade Diameter | mm | 300(250 - 350) |
| Shaft Diameter | mm | 30 |
| Tilting of Saw Blade | Degree | 90° - 45° |
| Max Cutting Depth at 90° | mm | 80 |
| Max Cutting Depth at 45° | mm | 55 |
| Speed of Saw Blade | RPM | 4000/6000 |
| Saw Blade Motor: | HP | 7.5 |
| Scoring Saw Section | ||
| Scoring Saw Blade Diameter | mm | 120 |
| Shaft of Scoring Saw | mm | 20 |
| Speed of Scoring Blade | RPM | 8000 |
| Scoring Blade Motor | HP | 1 |
Pneumatic job holding provision
Nihar Industries is synonymous with wood crafting machineries. We excel in manufacturing machineries required in wood Cutting, Polishing, Pressing, Fabrication and Engraving.
