Technical Specification
*Specifications are subjected to change without notice.

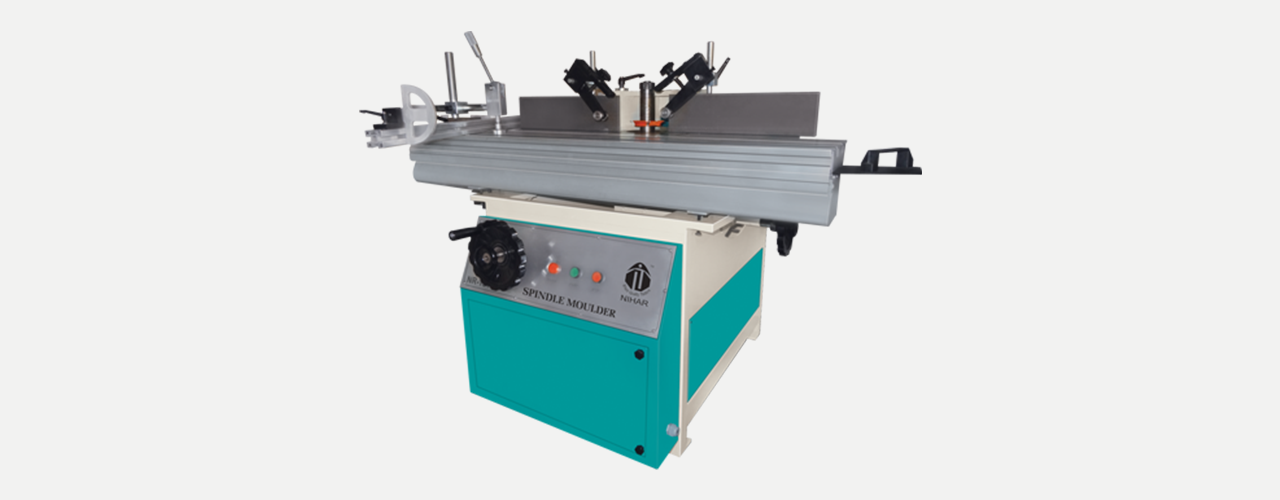

Description NR-169
Fix Table Size 865 mm x 548 mm
Sliding Table Size 1300 mm x 315 mm
Spindle Dia. 30 mm.
Spindle Speed 5000/7000/9000 RPM
Spindle Tilt 45°
Spindle Movement 100 mm
Max Molding Block Width 100 mm
Dust Collecting pot Dia. 100 mm
Power 5 HP
Silent Features
  • A side ripfence of alluminum which is adjustable.
  • Clamping for tenoning work.
  • Ground & electronically balanced spindle for vibration free operation.
  • Easy and convenient system for locking of spindle shaft.
  • Spindle driven by motors through V - belts and are housed in sealed bearings; thus ensuring minimum maintenance.
  • 3-spindle speeds 5000/7000/9000 RPM for selection depending on tool diameter.
  • Dust chute is provided on fence assembly for dust evacuation.
  • It is advised that 9000 RPM speed be utilized for routing work only.
